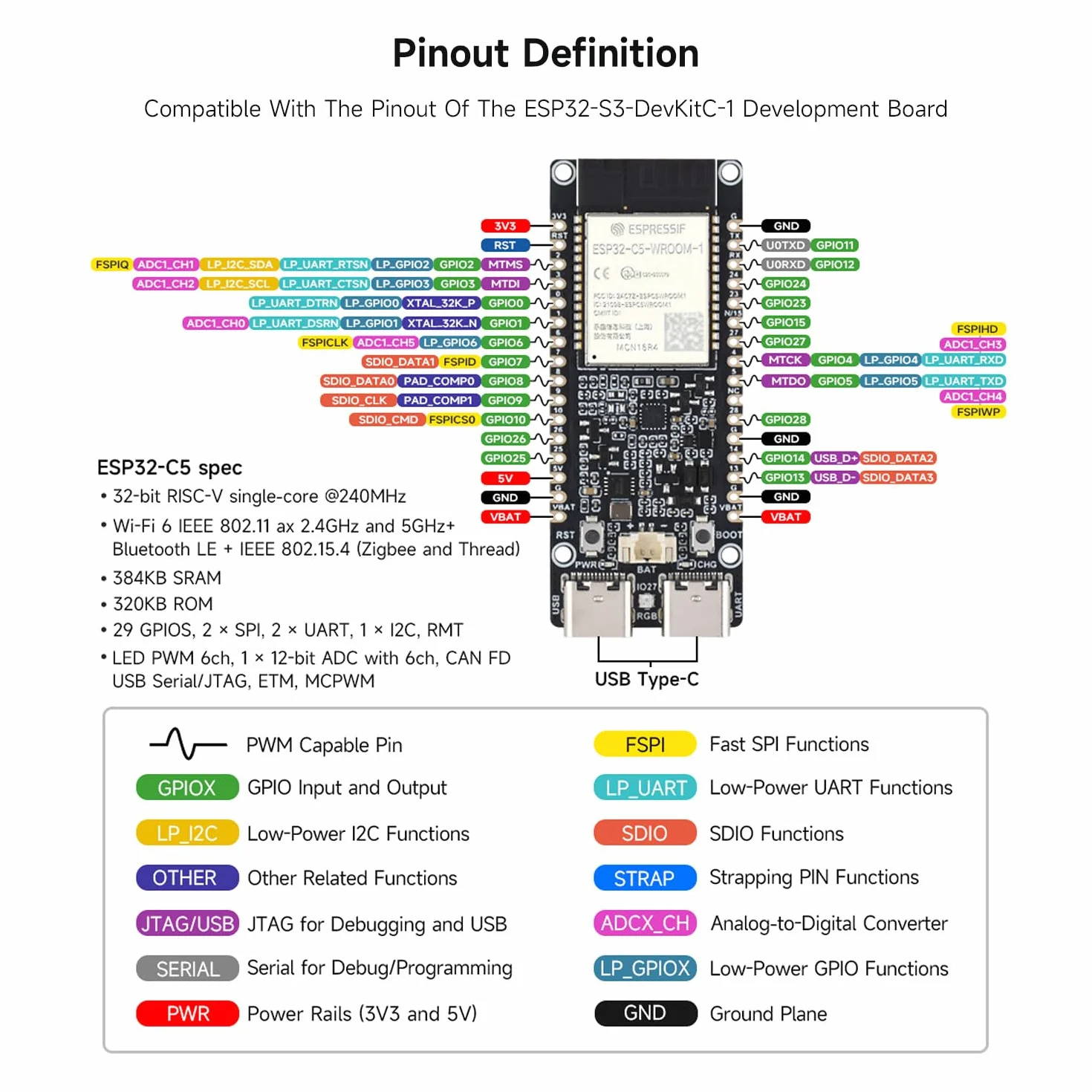

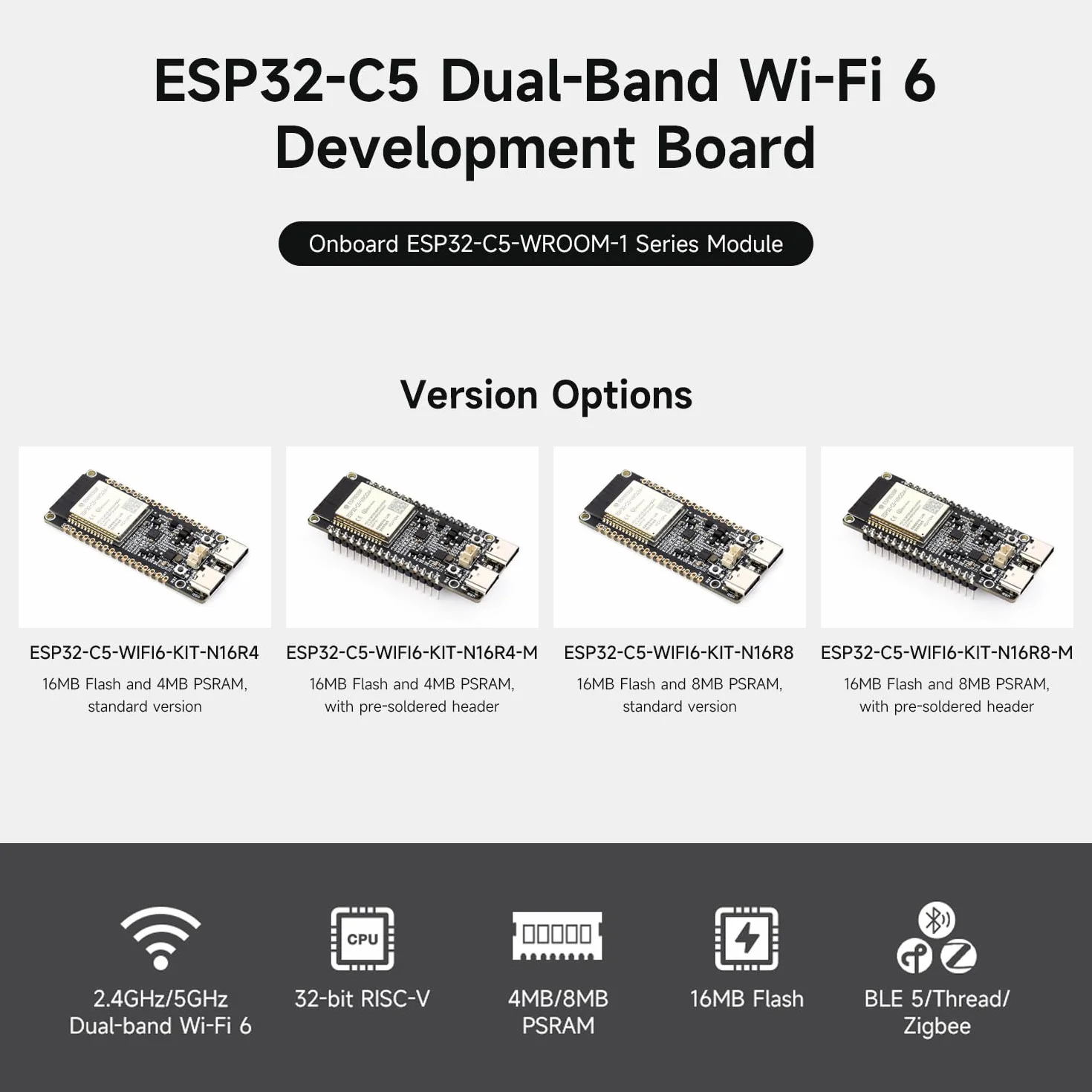

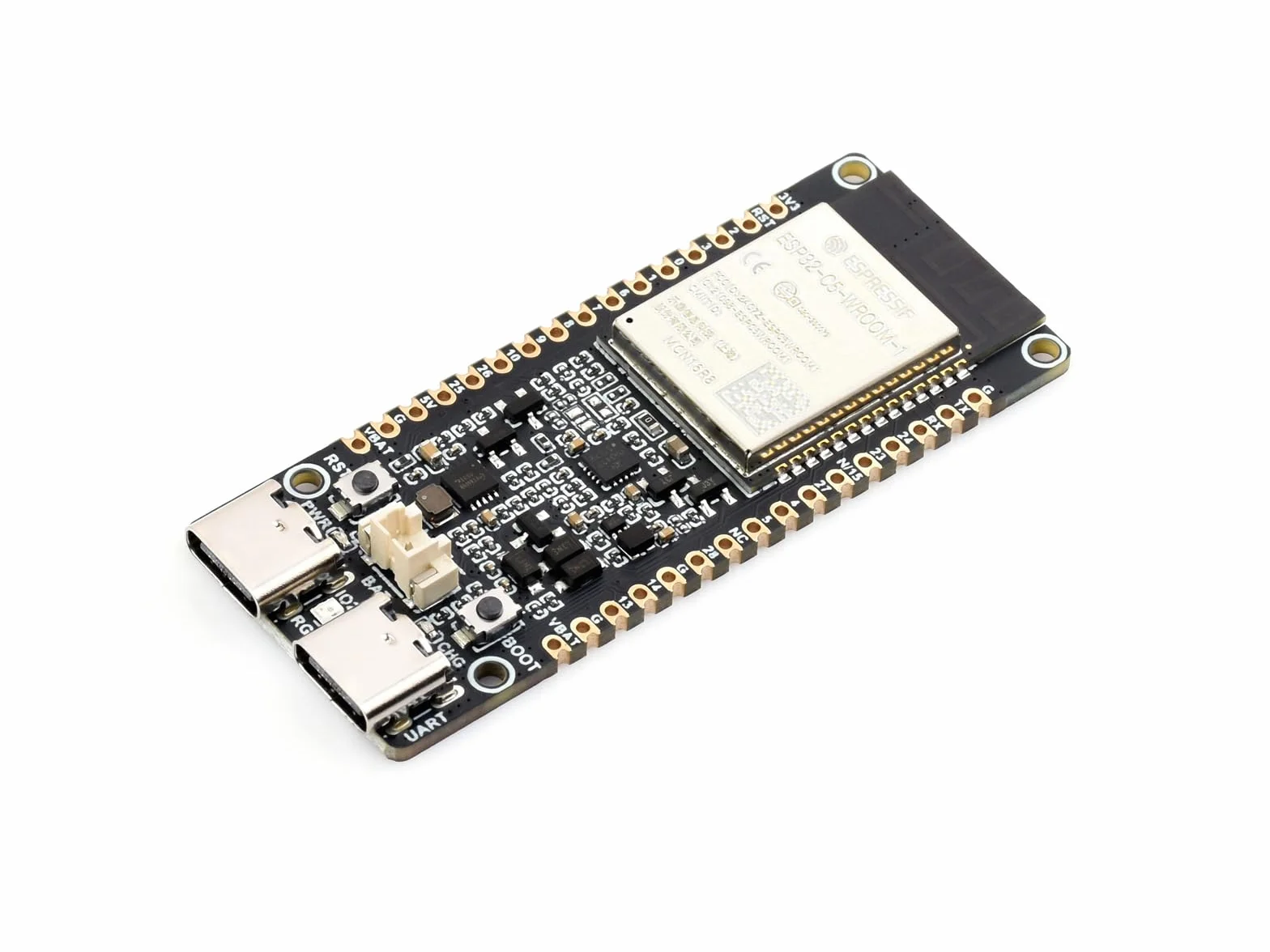

Waveshare ESP32-C5 Dual-Band Wi-Fi 6 Development Board, 16MB Flash and 8MB PStatic RAM, 240MHz RISC-V Processor, ESP32-C5-WROOM-1 Series Module, Multi-Protocol RISC-V MCU, Standard Version

Marka: Waveshare
Gniazdo CPU: BGA 1023
Zgodne urządzenia: ESP32-C5
Kompatybilne procesory: ESP32-C5-WROOM-1
Typ chipsetu: ESP32-C5
Platforma: Niestandardowe
Nazwa modelu: ESP32-C5
Pojemność pamięci masowej: 8 MB
Maksymalny rozmiar pamięci RAM: 8 MB
Typ głównego złącza zasilania: 24 pin

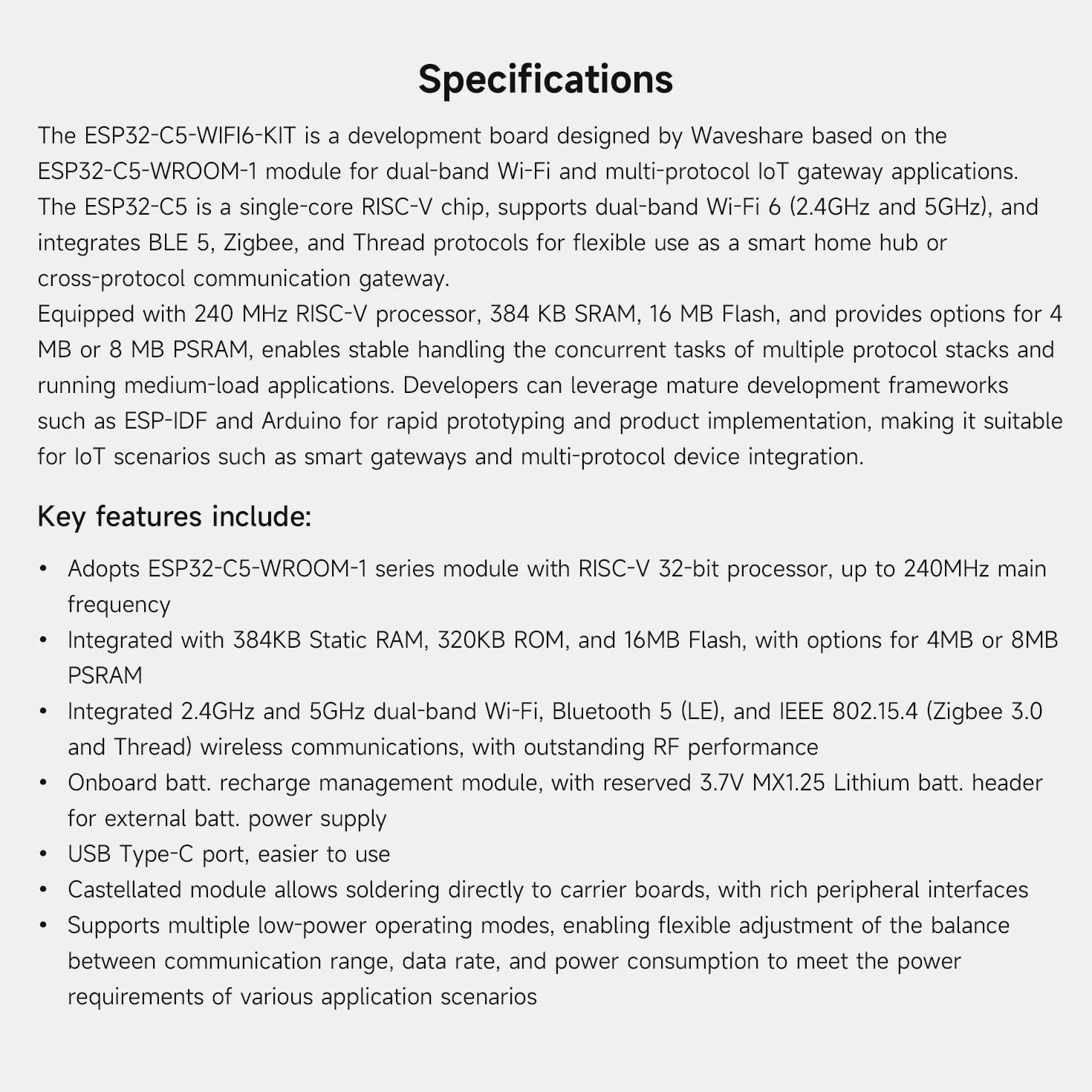

- Adopts ESP32-C5-WROOM-1 series modules, equipped with a RISC-V 32-bit processor, with a clock speed of up to 240MHz. Integrates with 384KB Static RAM, 320KB ROM, and 16MB Flash, 8MB PStatic RAM
- Integrates dual-band 2.4GHz and 5GHz Wi-Fi, BT 5 (LE), and IEEE 802.15.4 (supporting Zigbee 3.0 and Thread) wireless communication, featuring excellent RF performance
- Onboard bat charging management module, with a reserved 3.7V MX1.25 li bat interface, allowing for external bat connection for power supply
- Features a reversible USB Type-C interface. Features rich peripheral interfaces, with castellated design for easy welding and integration into the user-designed base boards
- Supports a variety of low-power operating states, allowing flexible adjustment of the balance between communication distance, data rate and power consumption to meet the power requirements of various application scenarios
